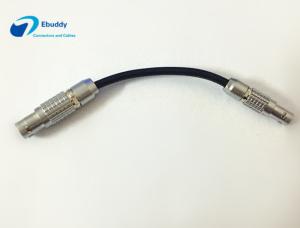

Epic / Dragon Power Cable Red Lemo Cable FGJ 6pin To D-Tap / Powertap Male Cable

Red Epic/Dragon Power cable Lemo FGJ 6pin to D-tap/powertap male cable

• Lemo 2-pin DC OUT to Lemo 6-pin plug DC IN
• FGG.0B.302.CLAD52Z (gimbal) to FHJ.1B.306 (Red Camera Power)
• 7cm, with a thin and flexible cable
• 2-Pin (Straight), right angle style is available
• 6-pin (Straight) ​,right angle style is available

Specification:

• Material: Polyurethane material(PU)
• Temperature range: -40°--- +80°
• Color: Black, Red, Blue, White, Yellow, Green
• Size: 00B/0B/1B/2B, 0K/1K/2K
• Cable OD Range: 3.1mm—8.2mm

When you choose the plug, there always 2 style for your options : with sleeve or without. To make sure you have done a right chioce, please let me show you difference as followings:

Difference:

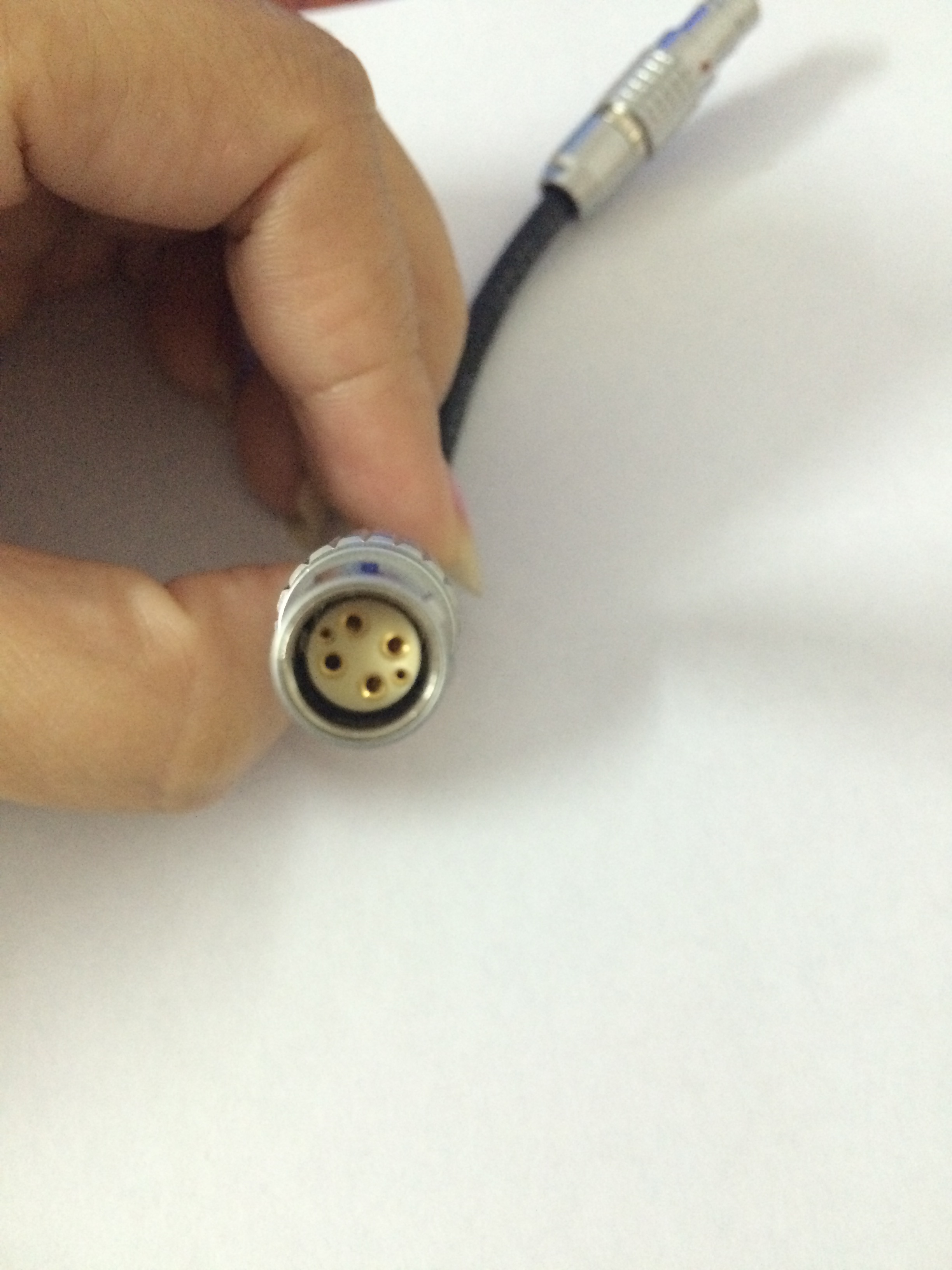

1. structure : only a little difference in connector’s tail, no big function difference please see attached pictures:

without sleeve style:

With sleeve style:

2. Model number :

Without sleeve: FGG.0B.304.CLAD52

With sleevr: FGG.0B.304.CLAD52Z, Z stand by sleeve

3. Advantage :

• With sleeve: the sleeve can relieve some damage to the cable when working
• Without sleeve: this structure can short both connectors length, for example, if you only need do 6cm—10cm long cable, you need use this style, it can be more flexible and easier to do cable assembly.

For all our connectors and cables, we supply 1 year warranty time, any problems in warranty time:

• We will fix it or replace new brand one
• We will bear both sides shipping cost.
