Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly

Product Categories
Ebuddy Technology Co.,Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly

  • 1
  • 2

Brand Name : Ebuddy

Model Number : HGG.0B.303.CLAD

Certification : CE.ROHS

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : Western Union, T/T，Paypal

Supply Ability : 10000pcs per month

Packaging Details : pp pag

Application : power supply

Keying : 1 key (alpha=0)

Housing Material : Brass (chrome plated) shell

Rated Current : 8 A

IP Rating : IP50

R (max) : 4.8 mOhm

Contact Now

Lemo alternative FGG 0B 3pin male cable connector for DIY cable assembly

Technical Specifications
  • Series: FGG*: Cable welding connector
  • Keying: G key fixing, 0°
  • Insulator: PPS
  • Housing Material:Brass chrome plated
  • Insert: 0B.303 : 3 Low Voltage
  • Configuration:Brass (gold plated)
  • Insulator:P:PPS
  • Contact Dia:0.9 mm

  • Bucket Dia:0.8 mm

  • Max. Solid Conductor:0.34 mm^2 (AWG 22)

  • Max. Stranded Conductor:0.34 mm^2 (AWG 22)

  • Specifications: Low Voltage
  • Vtest (AC):2000 V
  • Rated Current: 8A

Other Technical specifications:

OTHER CHARACTERISTICS
Endurance (Shell) 5000 mating cycles
Temp (min) -20 deg C
Temp (max) +150 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
IP Rating 50
Why you need buy compatible connector?

1. 100% compatible lemo connector,

2. Help you save at least 30% cost

3. Cable assembly offer,help you save production time.

With Sleeve or without:

When you choose the plug, there always 2 style for your options : with sleeve or without. To make sure you have done a right chioce, please let me show you difference as followings:

Difference:

1. Model number :

  • Without sleeve: FGG.0B.304.CLAD52
  • With sleevr: FGG.0B.304.CLAD52Z, Z stand by sleeve

2. Advantage :

  • With sleeve: the sleeve can relieve some damage to the cable when working
  • Without sleeve: this structure can short both connectors length, for example, if you only need do 6cm—10cm long cable, you need use this style, it can be more flexible and easier to do cable assembly.

3. Structure : only a little difference in connector’s tail, no big function difference please see attached pictures:

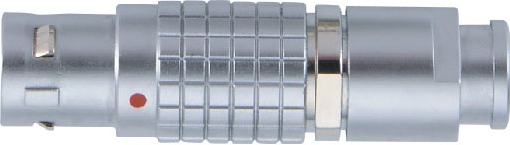

without sleeve style:

Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly

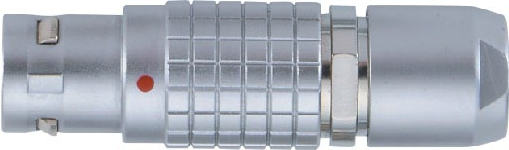

With sleeve style:

Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly

Sleeve color options:

Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly

Size and Drawing:

Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly

Lemo Alternative FGG 0B 3 Pin Male Cable Connector For DIY Cable Assembly
