Waterproof IP68 2 Pin Lemo Connector FGG 0K Size Male And Female Connectors

Ebuddy Technology Co.,Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Waterproof IP68 2 Pin Lemo Connector FGG 0K Size Male And Female Connectors

Brand Name : OEM

Model Number : EY-M713

Certification : CE,ROHS

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 90000pcs per month

Delivery Time : 3-7 working days

Packaging Details : PP bag

Contact : Male plug/female socket

Serials : 0K 1K 2K

Waterpproof : Yes

IP rating : IP68

Housing Material : Brass chrome plated

Configuration : Brass (gold plated)

Contact Now

Waterproof IP68 Lemo alternative connector 2pin FGG 0K size male and female connectors

Technical Specifications:

PERFORMANCE DETAILS
Insert 0K.302 : 2 Low Voltage
Configuration Brass (gold plated)
Insulator P:PPS
Specifications Low Voltage
Contact Type Solder
Max. Matings 5000
Contact Dia 0.9 mm
Bucket Dia 0.8 mm
Max. Solid Conductor 0.34 mm^2 (AWG 22)
Max. Stranded Conductor 0.34 mm^2 (AWG 22)
R (max) 4.8 mOhm
Vtest (AC) 1600 V
Rated Current 10 A

Other Details:

Endurance (Shell) 5000 mating cycles
Temp (min) -20 deg C
Temp (max) +150 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
IP Rating 68
Application :
  • Medical
  • Defense Security
  • Instrumentation
  • Transportation
  • Industry
  • Energy
  • Broadcast
  • Audio/video

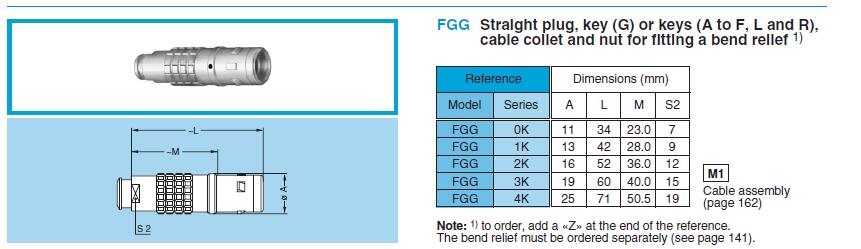

Size and Drawing

Waterproof IP68 2 Pin Lemo Connector FGG 0K Size Male And Female Connectors

Waterproof IP68 2 Pin Lemo Connector FGG 0K Size Male And Female Connectors

Waterproof IP68 2 Pin Lemo Connector FGG 0K Size Male And Female Connectors
